Some Access Points (sometimes referred to as Routers or Hubs) feature an automatic connection button labelled “WPS” (which stands for Wi-Fi Protected Setup) this allows permitted devices to connect to your network without needing to enter a password. This enables a quick and easy method of connecting your devices.

There are two ways the WPS method can connect devices together over a wireless connection. One is "pushbutton" and the other is "PIN". The “pushbutton” method is by far the easiest way of connecting your device, so we will describe how to connect using this method.

If your router does not support WPS we have provided alternative instructions to get your printer connected so please select the 'Standard Connection Method' tab below.

WPS Connection Method

Before we start, there are however some conditions that must be met in order to use the WPS push button method:

  • The access point must have a physical WPS push button available, please check with your device’s user guide for details.
  • Your network must be using the WPA (Wi-Fi Protected Access) or WPA2 security protocol. Most WPS enabled access points will not connect using the WPS method if the WEP (Wired Equivalent Privacy) security method is used, or if no security is enabled. For details on which security method is being used on your wireless network, please check the wireless connection settings on your computer.

Please follow the steps below to complete the setup -


Step 1

1. Make sure that the printer is turned on and the WPS button on the wireless router is accessible to be pressed when required.


Step 2

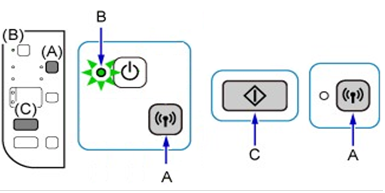

2. Press and hold the [Wi-Fi] button (A) on the printer until the ON lamp (B) flashes.





Step 3

3. Press [Black] button (C) and then the [Wi-Fi] button (A); make sure the Wi-Fi lamp (D) flashes quickly and the ON lamp is lit as shown in illustration below. Then then go to your access point and press the [WPS] button within 2 minutes.


[MASTER] Picture_PIXMA Wireless Connection tab 1-4


Step 4

4. The blue Wi-Fi lamp on the printer will continue to flash while searching, and the Power and Wi-Fi lamps will both flash when connecting to the access point. When the printer has successfully made a connection to your wireless network, the Power and Wi-Fi lamps will stop flashing and remain lit.


Step 5

5. Make sure that the Wi-Fi lamp and the ON lamp are lit.

[MASTER] Picture_PIXMA Wireless Connection tab 1-5



For exact details regarding pressing the WPS button, please refer to your access point manual.

Network settings confirmation

To confirm that your printer is successfully connected to your wireless network, you can print out the network settings of your printer if you wish:


1. Make sure that your printer is turned on.

2. Load two sheets of A4 or Letter-sized plain paper.

3.Press and hold the [Wi-Fi]icon button until the Power icon lamp flashes once and then release it.

4.Press the [Wi-Fi]icon button and the network information page will be printed.



When referring to the printout, check that “Connection” indicates “Active” and that the SSID -Service Set Identifier (the name of your wireless network) indicates the correct name of your wireless network.

This concludes the WPS setup procedure.

Please now install the provided software.

If you do not have the CD(’s) that came with your product, or you are a Mac user, please download the software.


If the WPS wireless setup is still failing after following this guide, please contact us for further assistance.


Standard connection method (For Windows & Mac users only)

If your access point does not support the WPS feature, use the following instructions to set your printer up on your wireless network:

For Windows users, insert the CD that came with your printer & run the setup.

If you do not have the CD(’s) that came with your product, or you are a Mac user, please download the software.


The downloaded file for Windows will look something like this: win-mg3600-XXX-mcd.exe

The downloaded file for Mac will look something like this: mac-mg3600-XXX-mcd.dmg

Please use the links below to view the correct instructions for your operating system -

Windows Setup

Mac Setup

Connection for Windows users only

Step 1

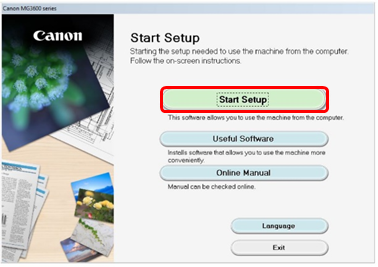

1. When the initial screen appears click on [Start Setup].

2-1



Step 2

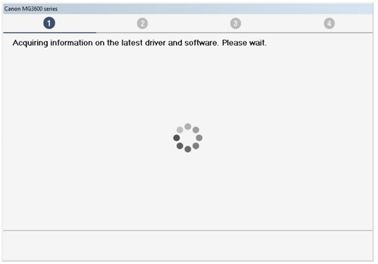

2. The software will check to see if there are any updates to the driver and software, and will download them as necessary, this make take a few minutes.

2-2



Step 3

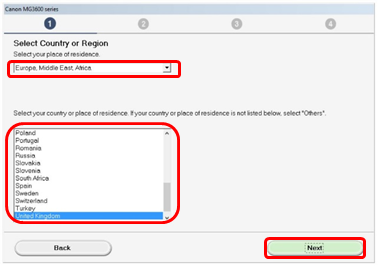

3. Select your region and country, then click on [Next].

2-3



Step 4

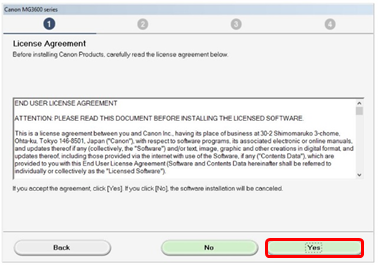

4. If you accept the terms of the license agreement, click [Yes].

2-4



Step 5

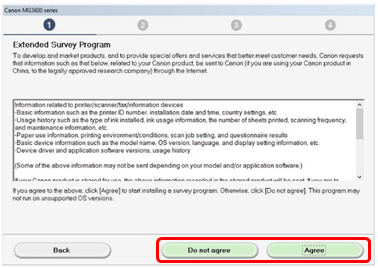

5. If you would like to take part in the Extended Survey Program, click [Agree], otherwise click [Do not agree].

2-5



Step 6

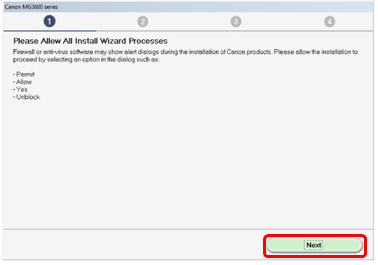

6. To Allow All Install Wizard Processes, click [Next].

2-6



Step 7

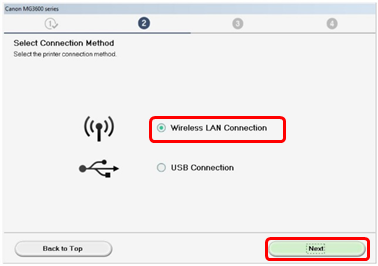

7. Select [Wireless LAN Connection], then click [Next].

2-7



Step 8

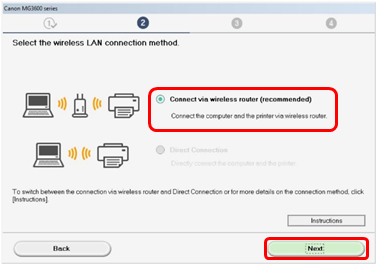

8. Select [Connect via wireless router (recommended)], then click [Next].

2-8



Step 9

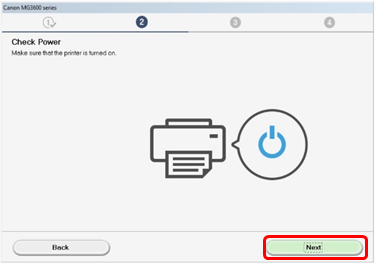

9. Ensure your printer is powered on, then click [Next].

2-9



Step 10

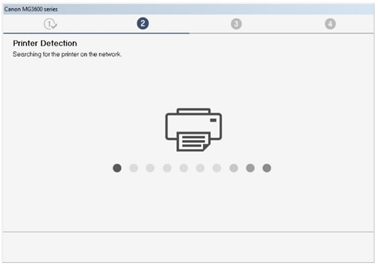

10. The software will search for any printers already setup on your network.
Detection may take some time, so please be patient while the software searches for a printer.

2-10



Step 11

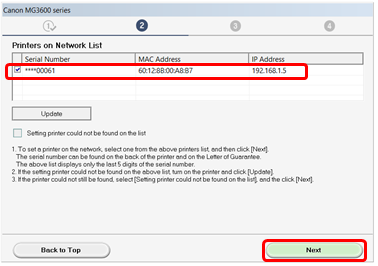

11. If you have already connected your printer to your network, select it from the list within the “Printers on the Network List” window and click [Next] to start the software installation, then proceed to step 17. If this is the first time you are setting up your printer it will not be displayed on the list, so please continue to step 12.

2-11



Step 12

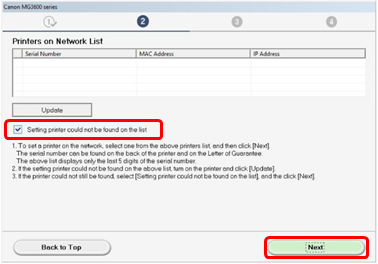

12. Ensure “Setting printer could not be found on the list” is selected, then click [Next].

2-12



Step 13

13. The following screen will briefly appear.

2-13



Step 14

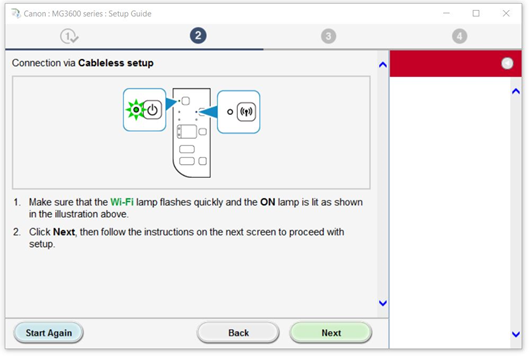

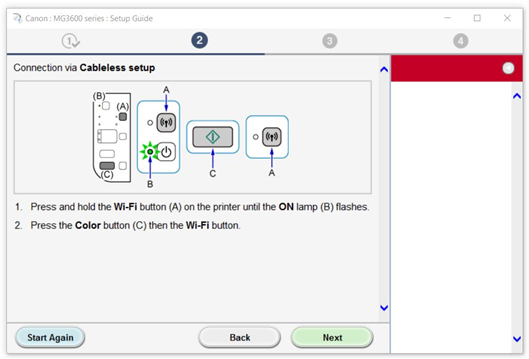

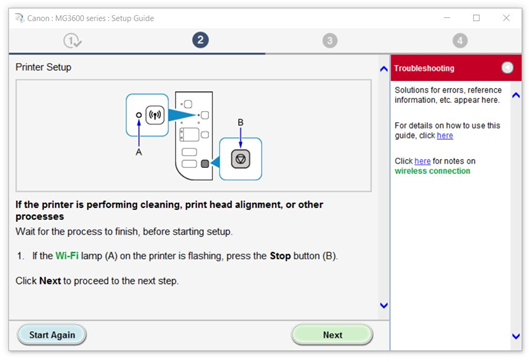

14. The setup guide will open and guide you through connecting your printer to your network using the “Connection via Cableless setup” process.
Please follow the on-screen instructions carefully to prepare your printer for connection. Only click next, when your printer corresponds with the example shown in the diagrams below.

2-14-1

2-14-2

2-14-3



Step 15

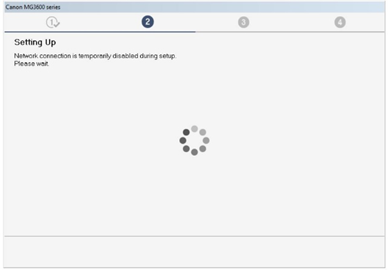

15. Please wait while the setup discovers the printer. During this time the network connection on your computer is temporarily disabled.

2-15



Step 16

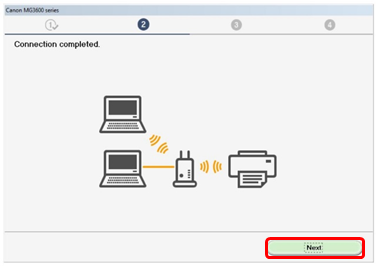

16. Once the setup is complete, click [Next].

2-16



Step 17

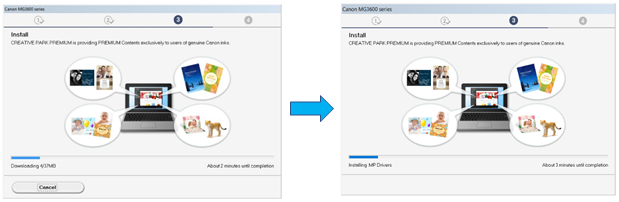

17. The MP drivers and network tools will be downloaded and installed, please wait while the software is installed.

2-17



Step 18

18. Please wait while the setup completes.

2-18



Step 19

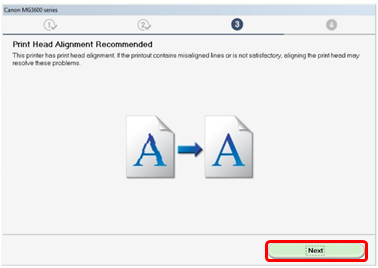

19. If you’re installing the printer for the first time Print Head Alignment is recommended after the installation is completed, click [Next]. Please refer to the user guide for further details.

2-19



Step 20

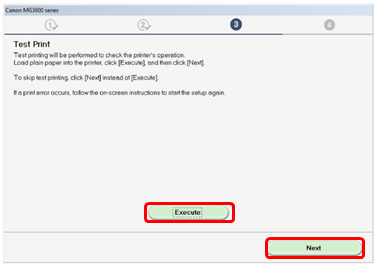

20. To perform a Test Print to confirm installation, click [Execution] otherwise click [Next].

2-20



Step 21

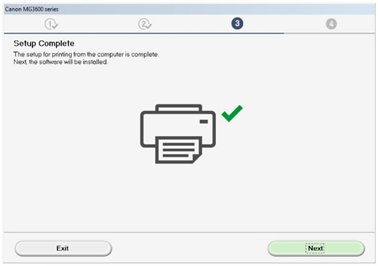

21. Setup is now complete, click [Next] to perform the software installation.

2-21



Step 22

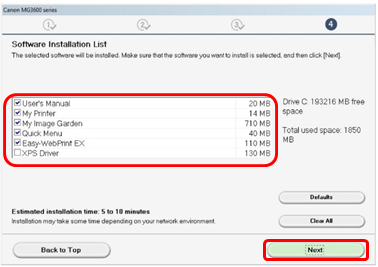

22. Select the software you wish to install from the list, then click [Next]. If you’re not sure which software you want to install at this stage, don’t worry, as you can always uninstall it at a later stage if you wish.

2-22



Step 23

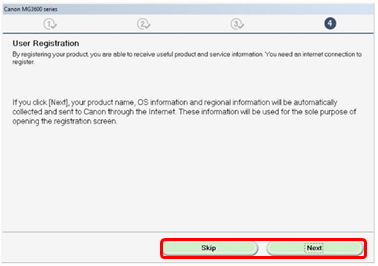

23. To register your printer, click [Next] (this will open in a web browser). Otherwise, click [Skip].

2-23



Step 24

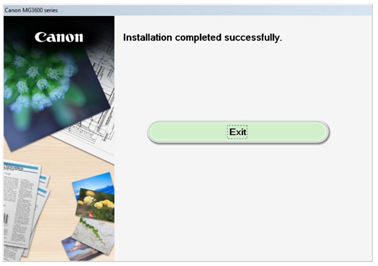

24. Click [Exit] to finish the installation.

2-24



Connection for Mac users only

Step 1

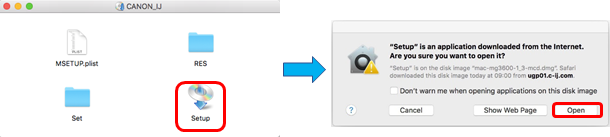

1. Double click on the downloaded .dmg file to open the following screen. Double click on the [Setup] icon to start the setup, then click [Open].

mac1



Step 2

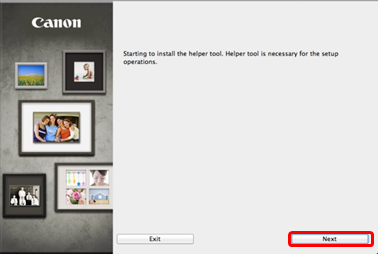

2. When the initial screen appears, click on [Next].

mac2



Step 3

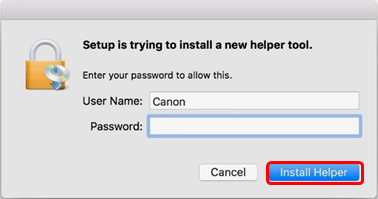

3. When the following screen appears, type your Password to allow the Helper Tool to be installed, then click on [Install Helper].

mac3



Step 4

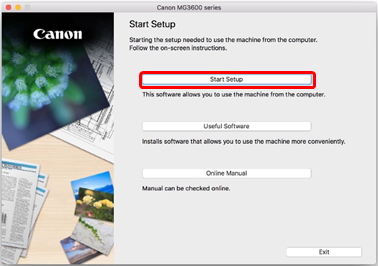

4. When the following screen appears, click on [Start Setup].

mac4



Step 5

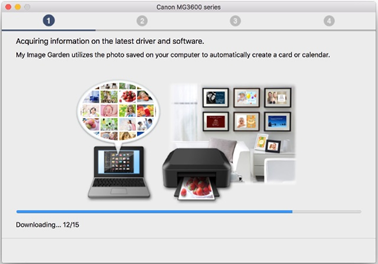

5. The software will check to see if there are any updates to the driver and software, and will download them as necessary, this may take a few minutes.

mac5



Step 6

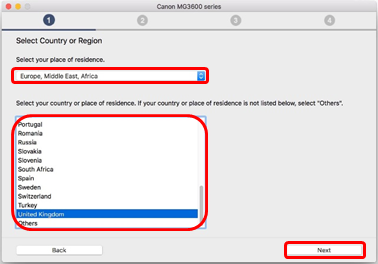

6. Select your region and country, then click on [Next].

mac6



Step 7

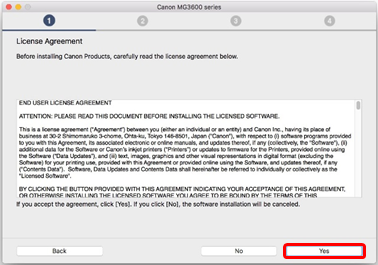

7. If you accept the terms of the license agreement, click [Yes].

mac7



Step 8

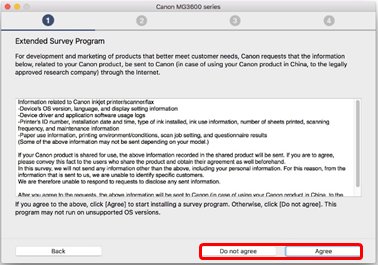

8. If you would like to take part in the Extended Survey Program, click [Agree], otherwise click [Do not agree].

mac8



Step 9

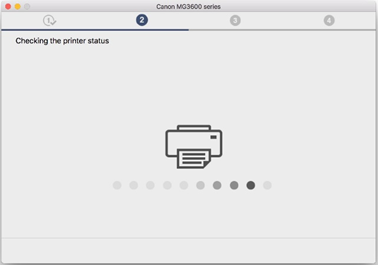

9. The following screen will appear whilst checking the printer status, this may take a few minutes.

mac9



Step 10

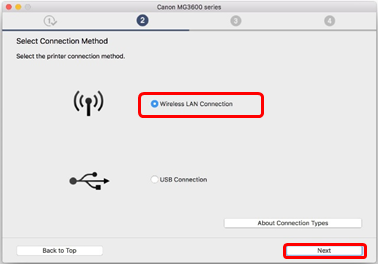

10. Select [Wireless LAN Connection] then click [Next].

mac10



Step 11

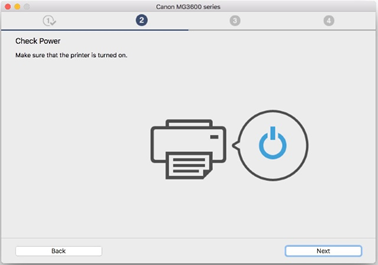

11. Ensure your printer is powered on, then click [Next].

mac11



Step 12

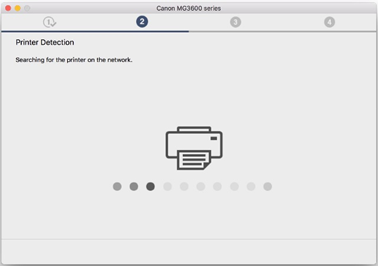

12. The software will search for any printers already setup on your network.

Detection may take some time, so please be patient while the software searches for a printer.

mac12



Step 13

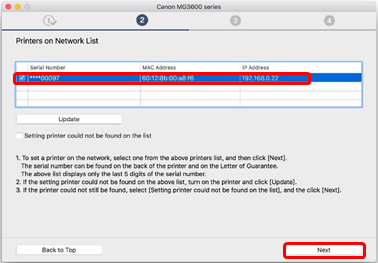

13. If you have already connected your printer to your network, select it from the list within the “Printers on the Network List” window and click [Next] to start the software installation, then proceed to step 20.
If this is the first time you are setting up your printer, it will not be displayed on the list, so please continue to step 14.

mac13



Step 14

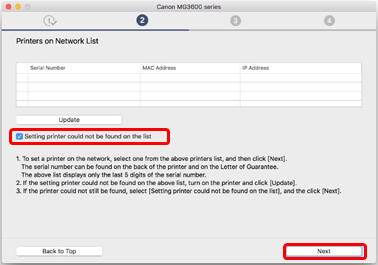

14. Ensure [Setting printer could not be found on the list] is selected, then click [Next].

mac14



Step 15

15. The following screen will briefly appear.

mac15



Step 16

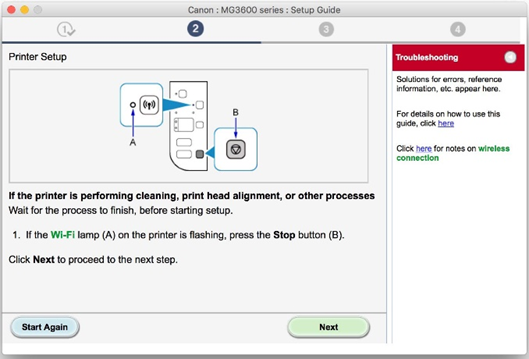

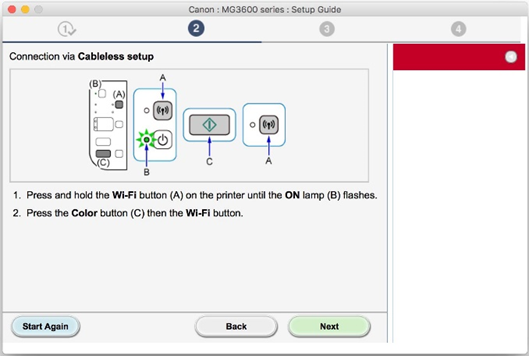

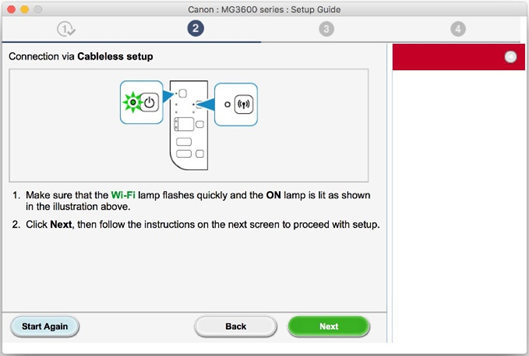

16. The setup guide will open and guide you through connecting your printer to your network using the “Connection via Cableless setup” process.
Please follow the on-screen instructions carefully to prepare your printer for connection. Only click Next, when your printer corresponds with the example shown in the diagrams below.

mac16

mac16-1

mac16-2



Step 17

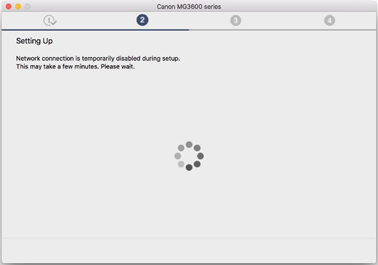

17. Please wait while the setup discovers the printer.
During this time the network connection on your computer is temporarily disabled.

mac17



Step 18

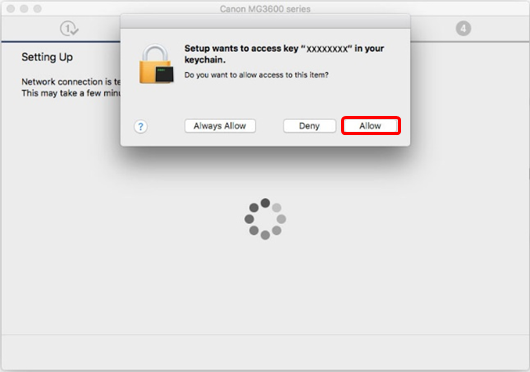

18 When the following message is displayed, click [Allow].

mac18



Step 19

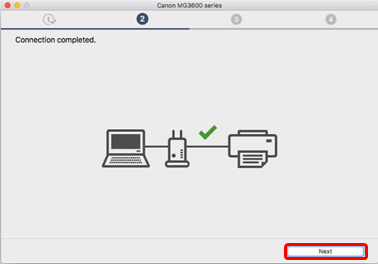

19. Once the Setup is complete, click [Next].

mac19



Step 20

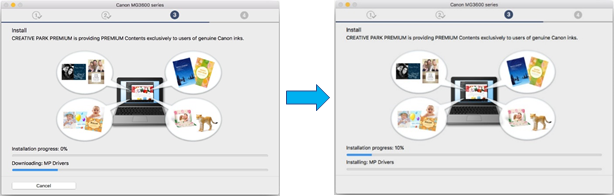

20. The MP Drivers and Network Tools will be downloaded and installed, please wait while the software is installed.

mac20



Step 21

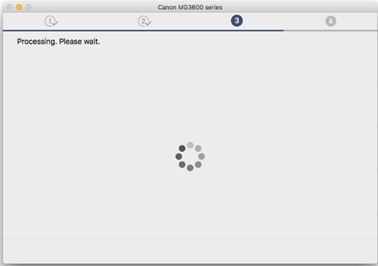

21. Please wait while the setup completes.

mac21



Step 22

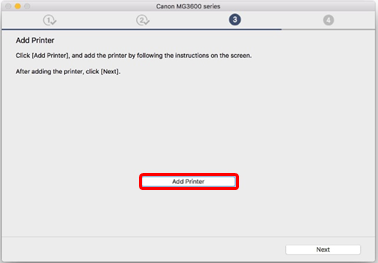

22. Click [Add Printer].

mac22



Step 23

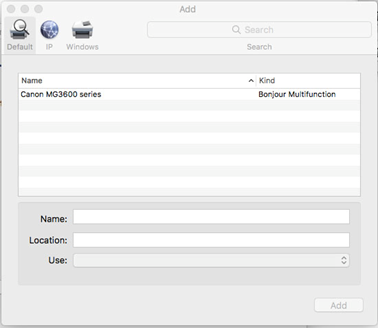

23. The printer will be discovered and displayed in the “Add” window below.
Initially, only the Bonjour Multifunction will be detected. Please wait a moment until the window has updated.

mac23



Step 24

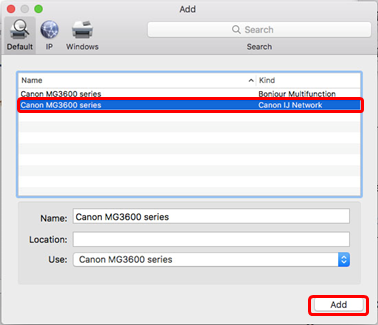

24. Wait until the Canon IJ Network has been discovered, then select the printer with "Canon IJ Network" listed in the "Kind" column and click [Add].

mac24



Step 25

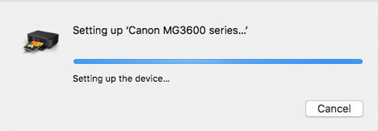

25. The following screen will appear, please wait while the printer is setting up. After adding your printer, the setup screen may be hidden by the browser. If this happens, click on the “Setup” icon setup located in the dock, to display the screen again.

mac25



Step 26

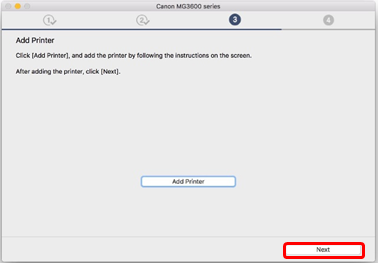

26. Click [Next] to complete setup of the printer.

mac26



Step 27

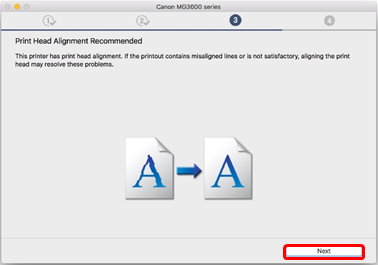

27. If you’re installing the printer for the first time, it is recommended to perform a  “Print Head Alignment” after the installation is complete. Please refer to the user guide for further details. Click [Next] to continue.

mac27



Step 28

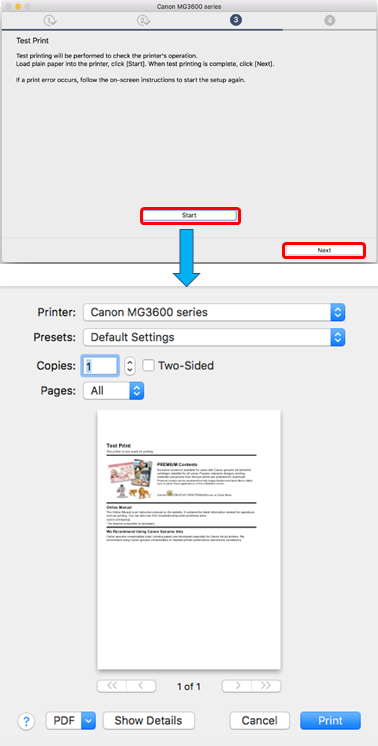

28. To perform a test print to confirm installation, click [Start] otherwise click [Next].

mac28



Step 29

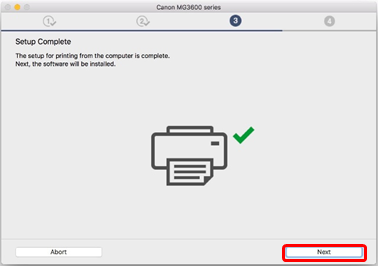

29. The setup is now complete, click [Next] to perform the software installation.

mac29



Step 30

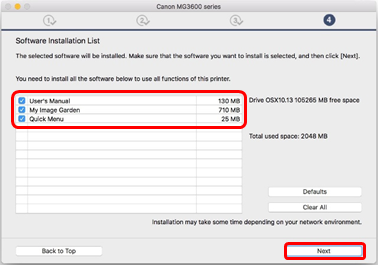

30. Select the software you wish to install from the list, then click on [Next]. If you’re not sure which software you want to install at this stage, don’t worry, as you can always uninstall it at a later stage if you wish.

mac30



Step 31

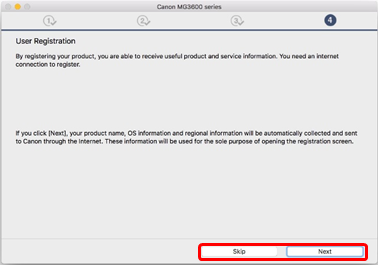

31.To register your printer, click [Next] (this will open in a web browser). Otherwise, click [Skip].

mac31



Step 32

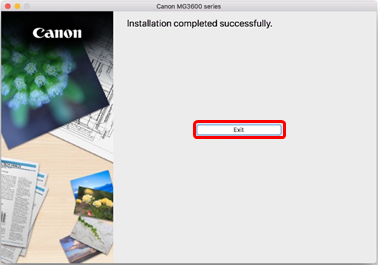

32. Click [Exit] to finish the installation.

mac32

Back to top


Restoring your printer’s network settings back to factory default

If you need to reset your network settings back to factory default, for example if you change your access point, you can do so by following these instructions.

Please note that initialisation erases all network settings on the machine, so printing or scanning from a computer over the network will become impossible until the printer is re-configured with new network settings.


Step 1

1. Press and hold the [RESUME/CANCEL] reset button until the ALARM lamp flashes 21 times.


Step 2

2. Release the [RESUME/CANCEL] reset button.


The network settings have been reset back to factory default settings.

Please now refer to the Wi-Fi setup – (WPS and Standard Connection methods) for instructions on setting up your printer onto your Wi-Fi network.
