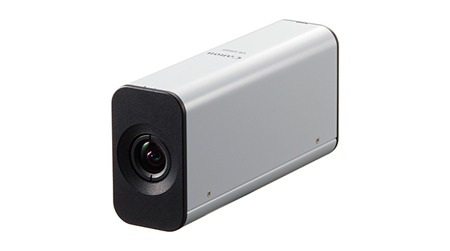

Canon VB-S905F

VB-S905F

A network Mini Fixed Box security camera with ultra-compact lens technology. Its compact design makes it ideal for a range of discrete indoor commercial environments.

/Images/VB-S905F_tcm114-1465245.jpg

Benefits

  • Outstandingly compact Mini Fixed Box design
  • 1.3MP resolution
  • CMOS sensor delivers high performance in low light
  • Wide angle f/1.6 Canon lens offers a 96° Angle of View
  • Multi-streaming (2x H.264, 3x MJPEG) in HD or lower resolutions
  • Edge recording/playback from MicroSD card (up to 64GB)
  • Six intelligent in-built analytics
  • Auto Smart Shade Control applies optimum exposure in difficult lighting conditions
  • ONVIF v2.2 and Profile S compliant
  • Ideal in a wide range of indoor commercial environments

Detailed Features

Take a more detailed look into Canon VB-S905F

HD resolution


The exceptionally compact VB-S905F Mini Fixed Box network security camera features HD (1280 x 720) resolution at 30fps. A CMOS sensor delivers impressive image quality without colour bleeding or blurred lines. Auto Smart Shade Control (SSC) optimises exposure to improve highlights and correct dark areas in back-lit scenes or low light conditions, offering a true Day/Night operation.

Outstanding Canon lens quality


The camera’s new ultra-compact wide-angle lens offers a 96° Angle of View. The wide angle and low distortion of the high quality f/1.6 Canon lens delivers more light to the camera’s sensor – achieving brighter and better-defined images.

Dual image processors


The dual image processors – DIGIC DV III and DIGIC NET II – enable seamless capturing, processing, encoding and transmitting of images. The internal programming has been re-engineered to deliver multiple H.264 and/or MJPEG streams in HD or lower resolutions. In addition to multi-streaming, the camera can also stream simultaneously. The H.264 encoder creates high-quality and high compression video, for smooth surveillance in a range of environments.

Easy to integrate


The camera integrates seamlessly thanks to its network camera SDK and HTTP protocol specification. Canon is a full member of ONVIF – the industry forum dedicated to the development of a global IP-based physical security interface standard. Compliance with the latest ONVIF V2.2 and Profile S makes it convenient to create a solution with ONVIF-complaint video management software.

Comprehensive on-board analytics


The VB-S905F offers an outstandingly rich set of intelligent features for such a compact device. These include Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection and Volume Detection. Normally, changes in light conditions interrupt a camera’s analytics but the new Canon range automatically resets within 20 seconds of detecting a significant increase or decrease in brightness. This ensures minimal interruption to any running analytics.

Simple and flexible installation



Power over Ethernet (PoE) technology with IEEE802.3af compliance allows the use of a single LAN cable to both power the camera and transfer video and audio data when connected to a PoE midspan or switch.

Product Specification

Find out more about the Canon VB-S905F, its features and what it can do.

DIGIC NET II

Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

Intelligent Function

Video Content Analysis

Power over Ethernet

Power over Ethernet

microSD

Edge recording

CCMT

Multiple camera management

VB-S905F
  • VB-S905F Main Unit
  • Setup CD-ROM
  • Installation Guide
  • Warranty Card
  • Leaflet of Warranty Card
