Canon VB-M620VE

VB-M620VE

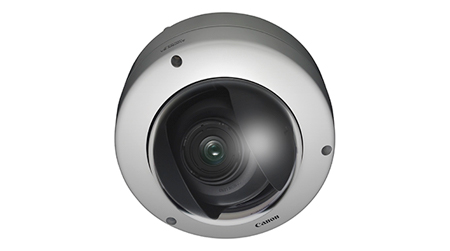

The VB-M620VE 1.3 MP fixed dome IP security camera with vandal-resistant and IP66 rated body is ideal for harsh outdoor conditions. Monitor and record activity day and night with an ultra-wide 111° field of view.

/Images/VB-M620VE-03_tcm114-1464382.jpg

Benefits

  • External protection thanks to rugged, weatherproof housing
  • Excellent image quality with 1.3 MP and 3x wide optical zoom
  • Removable IR cut filter gives 24 hour monitoring capabilities
  • Remote Pan/Tilt/Rotate/Zoom (PTRZ) function reduces installation time
  • Flexible monitoring and recording with dual H.264 streams

Detailed Features

Take a more detailed look into Canon VB-M620VE

Superior image quality and best-in-class optics


Protect and monitor your site in 1.3 MP resolution with superior image quality, utilising Canon DIGIC DV III image processor. An ultra-wide 111° angle lens with 3x optical and 4x digital zoom, combined with a removable IR Cut Filter, allows you to see everything at any time of the day. Electronic rear focus system and bright f/1.2 lens provides superior performance.

Vandal-resistant and waterproof design


With an alloy aluminium exterior housing and strong polycarbonate resin dome, the VB-M620VE camera is impact resistant up to 50 Joules. IP66 dust and waterproof rating makes it ideal for outdoor use. Operational temperatures of -10°C to 50°C and a built-in fog reduction mechanism makes it ideal for harsh environments. By adding an optional heating unit the camera can perform in conditions as cold as -30°C.

Powerful video performance


Canon DIGIC NET II network processor features an H.264 encoder, which creates both high-quality and high-compression video. Meanwhile, enhanced noise reduction (NR) control and colour reproduction gives you visible colour even in low-light conditions. Auto Smart Shade Control (Auto-SSC) improves visibility of foreground objects in bright backlit scenes. Class-leading low-light capabilities and True Day/Night operation ensures great results in a range of environments.

Intelligent and security focused


Intelligent Functions help operators to identify alarming situations, by analysing differences between different areas. It is possible to use up to 15 functions in parallel on one camera. A choice of six different Intelligent Functions includes Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection and Volume Detection. Detected activity can be set to activate recording, uploading images to a server or sending an email notification. By using an SD card you can retain and review alarm recorded footage without the content being first downloaded to a PC. SSL/TLS encryption ensures a secure connection between the camera and server.

Enhanced compatibility and convenience


Compliance with the latest, ONVIF v2.4 Profile S makes it convenient to create a solution with ONVIF-compliant video management software. Canon also supports seamless integration through the use of the Canon network camera SDK and HTTP protocol specification.

PTRZ function for easy set-up


The Camera Angle Setting Tool makes setting up the view after installation easier, saving time, by allowing remote Pan/Tilt/Rotation/Zoom (PTRZ) functionality from a network-connected computer.

Product Specification

Find out more about the Canon VB-M620VE, its features and what it can do.

DIGIC NET II

Efficient Network processing

Digic DV III

Manages image quality & control

1.3 Mega Pixel

High quality images

IK10

Certified vandal proof protection

Weatherproof

Weatherproof

Auto DayNight

Removable IR Filter

Intelligent Function

Video Content Analysis

Power over Ethernet

Power over Ethernet

SD Card

Edge recording

CCMT

Multiple camera management

VB-M620VE
  • VB-M620VE Main Unit
  • Power Connector
  • Setup CD-ROM
  • Safety Wire unit
  • Audio Interface Cable
  • Wrench
  • Template
  • Installation Guide(J)
  • Leaflet of Warranty Card
