Product Specification

Type

TTL

AF System/ Points

AiAF (31-point, Face Detection or Touch AF with Object and Face Select and Track), 1-point AF (any position is available or fixed centre)

AF Modes

Single, Continuous, Servo AF/AE [6], Touch AF

AF Point Selection

Size (Normal, Small)

AF Lock

Yes

AF Assist Beam

Yes

Manual Focus

Yes, plus MF Peaking & AF + MF

Focus Bracketing

Yes

Closest Focusing Distance

5 cm (Wide) from front of lens
85 cm (Tele) from front of lens

Metering modes

Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (centre or linked to Touch AF frame)

AE Lock

Yes

Exposure Compensation

+/- 3 EV in 1/3 stop increments
Manual and automatic dynamic range correction
Automatic shadow correction
ND Filter (3-stop)

AEB

1/3 – 2 EV in 1/3 stop increments

ISO sensitivity

125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800 [12]
AUTO ISO: 125 - 6400 (possible to set Max. ISO speed and rate of change)

Speed

1 – 1/2000 sec. (factory default) BULB, 30 – 1/2000 sec. (total range – varies by shooting mode)

Type

TTL

Settings

Auto (including Face Detection WB), Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Custom 1, Custom 2
Multi-area WB correction available in Smart Auto White Balance Compensation
Colour adjustment in Star mode

Type

sRGB

Viewfinder

Optional Electronic Viewfinder EVF-DC1

Monitor

Tilt type 8.0 cm (3.2”) sRGB PureColor II G Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,620,000 dots. Capacitive type

Coverage

Approx. 100%

Brightness

Adjustable to one of five levels. Quick-bright LCD

Modes

Auto, Manual Flash On / Off, Slow Synchro

Slow Sync Speed

Yes. Fastest speed 1/2000 sec.

Red-Eye Reduction

Yes

Flash Exposure Compensation

+/- 2 EV in 1/3 stop increments. Face Detection FE, Safety FE, Smart Flash Exposure

Flash Exposure Lock

Yes

Manual Power Adjustment

3 levels with internal flash (up to 19 levels with external EX Speedlites 270EX II and 430EX II. 22 levels with 580EX II, 600EX and 600EX-RT [2])

Second Curtain Synchronisation

Yes

Built-in Flash Range

60 cm – 6.8 m (W) / 85 cm – 3.1 m (T)

Modes

Smart Auto (58 scenes detected), Program AE, Shutter priority AE, Aperture priority AE, Manual, Custom 1, Custom 2, Hybrid Auto, Creative Shot, SCN (Sports, Portrait, Smart Shutter (Smile, Wink Self-Timer, FaceSelf-Timer), Star (Star Nightscape, Star Trails, Star Time-Lapse Movie), Handheld Night Scene, Snow, Fireworks), Creative Filters (High Dynamic Range, Nostalgic, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Background Defocus, Soft Focus, Monochrome, Super Vivid, Poster Effect), Movie

Modes in Movie

Smart Auto (21 scenes detected), Standard, Program AE, Manual, Portrait, Nostalgic, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Short Clip, iFrame Movie

Photo Effects

My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color)

Drive modes

Single, Auto Drive, Continuous, Continuous with AF, Self-Timer

Continuous Shooting

Approx. 5.9 shots/sec [9]
with AF: Approx. 3.2 shots/sec (all speeds are until memory card becomes full)[3][4]

Image Size

3:2 - (RAW, L) 5472 x 3648, (M1) 4320 x 2880, (M2) 2304 x 1536, (S) 720 x 480
4:3 - (RAW, L) 4864 x 3648, (M1) 3840 x 2880, (M2) 2048 x 1536, (S) 640 x 480
16:9 - (RAW, L) 5472 x 3080, (M1) 4320 x 2432, (M2) 1920 x 1080, (S) 720 x 408
1:1 - (RAW, L) 3648 x 3648, (M1) 2880 x 2880, (M2) 1536 x 1536, (S) 480 x 480
4:5 - (RAW, L) 2912 x 3648, (M1) 2304 x 2880, (M2) 1232 x 1536, (S) 384 x 480
Resize in playback (M2)

Compression

RAW, Superfine, Fine

Movies

(Full HD) 1920 x 1080, 59.94/50/29.97/25/23.98 fps
(HD) 1280 x 720, 29.97/25 fps
(L) 640 x 480, 29.97/25 fps
Star Time-Lapse Movie (Full HD) 30/15 fps
Miniature Effect (HD, L) 6 fps, 3 fps, 1.5 fps
Hybrid Auto (HD) 29.97/25 fps
iFrame Movie (Full HD) 29.97/25 fps

Movie Length

(Full HD & HD) Up to 4 GB or 29 min. 59 sec. [7]
(L) Up to 4 GB or 1 hour [4]
(Star Time-Lapse Movie) up to 128 sec

Still Image Type

JPEG compression (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system and DPOF ver. 1.1 compliant), RAW (14bit, Canon original RAW 2nd edition), RAW+JPEG

Movies

MP4 [Video: MPEG-4 AVC / H.264, Audio: MPEG-4 AAC-LC (stereo)]
iFrame

Canon Printers

Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge

PictBridge

Yes (via USB or Wireless LAN)

GPS

GPS via Mobile (linked to compatible smartphone)

Red-Eye Correction

Yes, during shooting and playback

My Camera / My Menu

My Menu customisation available

My Category

Image tagging feature

Intelligent Orientation Sensor

Yes

Histogram

Yes, live histogram

Playback zoom

Approx. 2x – 10x

Self Timer

Image tagging feature

Menu Languages

English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese, Hebrew

Computer

Hi-Speed USB (MTP, PTP) DIGITAL connector

Other

HDMI Micro Connector,
A/V output (PAL/NTSC)
External microphone (3.5 mm Stereo mini jack)
Headphone Output (3.5 mm jack)

Computer/Other

Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support [8]

Type

SD, SDHC, SDXC (UHS Speed Class 1 compatible)

PC & Macintosh

Windows 8 / 8.1 / 7 SP1
Mac OS X 10.8 / 10.9 / 10.10
For Wi-Fi connection to a PC:
Windows 8 / 8.1 / 7 SP1 only
Mac OS X 10.8.2 or later / 10.9 / 10.10

Other

CameraWindow DC
Map Utility
Image Transfer Utility

Image Manipulation

Digital Photo Professional for RAW development

Batteries

Rechargeable Li-ion Battery NB-10L (battery and charger supplied)

Battery life

Approx. 300 shots
Eco mode: 415 shots
Approx. 360 min. playback

A/C Power Supply

Optional, AC Adapter Kit ACK-DC80

Cases / Straps

Soft Case DCC-2300
PowerShot Accessory Organizer

Lenses

Lens Hood LH-DC100
Filter Adapter FA-DC67B (Compatible with Canon 67mm Filters: Circular Polarizing PL-C B, Protect Filter)

Flash

Canon Speedlite (including 270EX, 270EX II, 320EX, 430EX, 430EX II, 580EX, 580EX II, 600EX, 600EX-RT [2])
Speedlite Transmitter (ST-E3-RT, ST-E2), Speedlite bracket SB-E2, Off-Camera Shoe Cord OC-E3

Remote Controller/ Switch

Remote Switch RS-60E3

Power Supply & Battery Chargers

AC Adapter Kit ACK-DC80, Battery Charger CB-2LCE

Other

Electronic Viewfinder EVF-DC1 (0.48 type), 4:3 aspect ratio, Approx. 2,360,000 dots, 100% coverage
Interface cable IFC-400PCU
Canon HDMI Cable HTC-100

Operating Environment

0 – 40 °C, 10 – 90% humidity

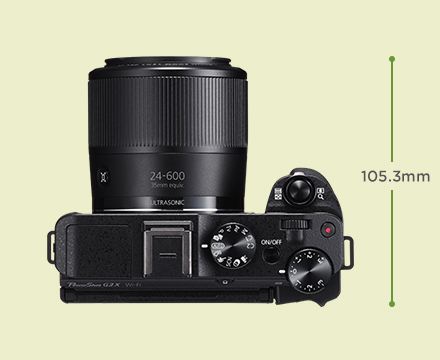

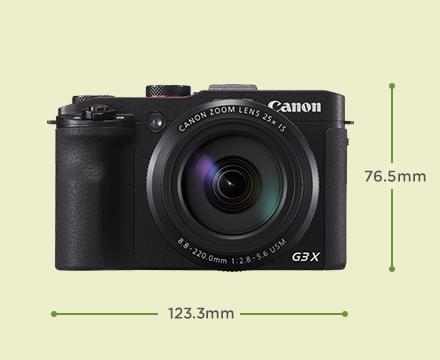

Dimensions (WxHxD)

123.3 x 76.5 x 105.3 mm

Weight

Approx. 733 g (including battery and memory card)
